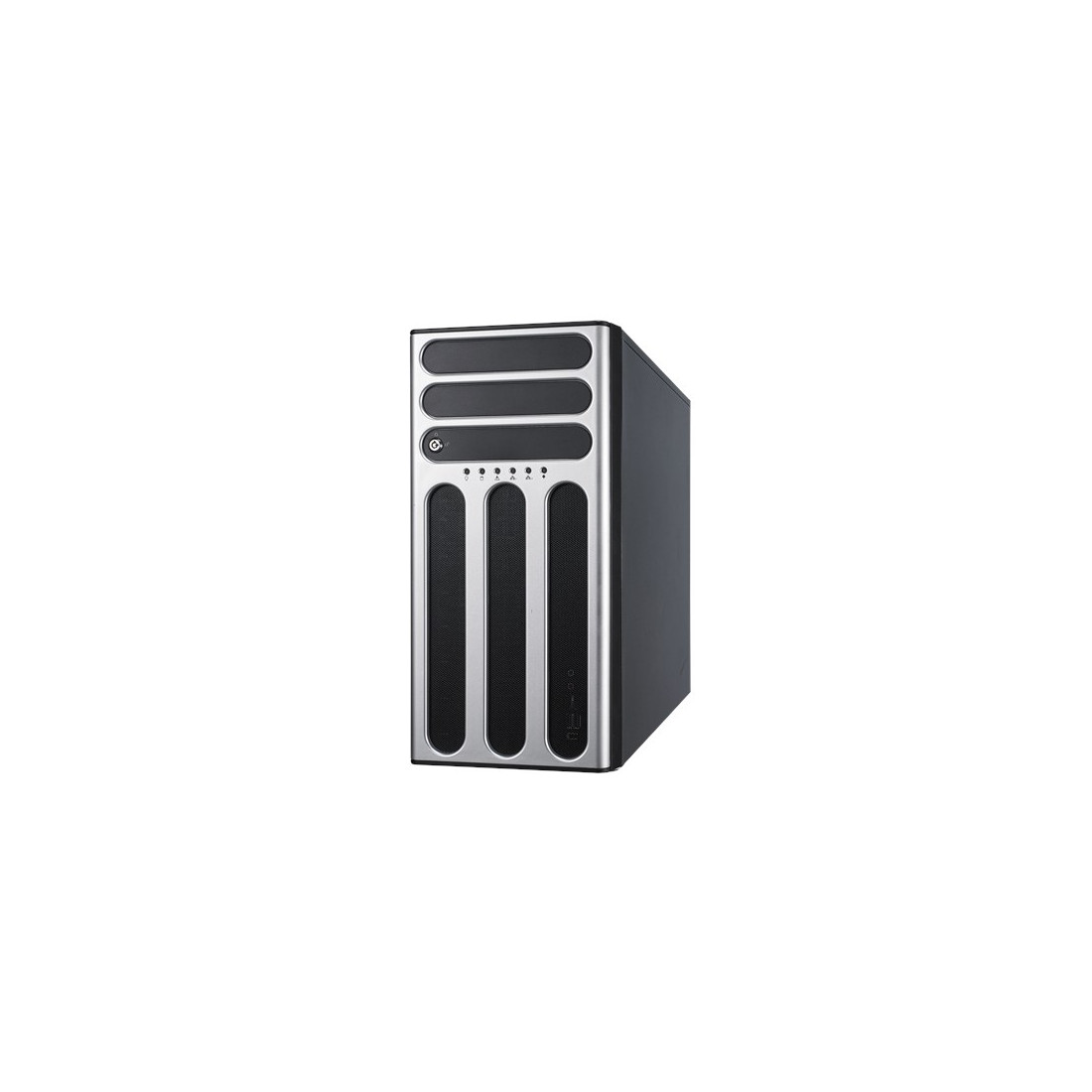

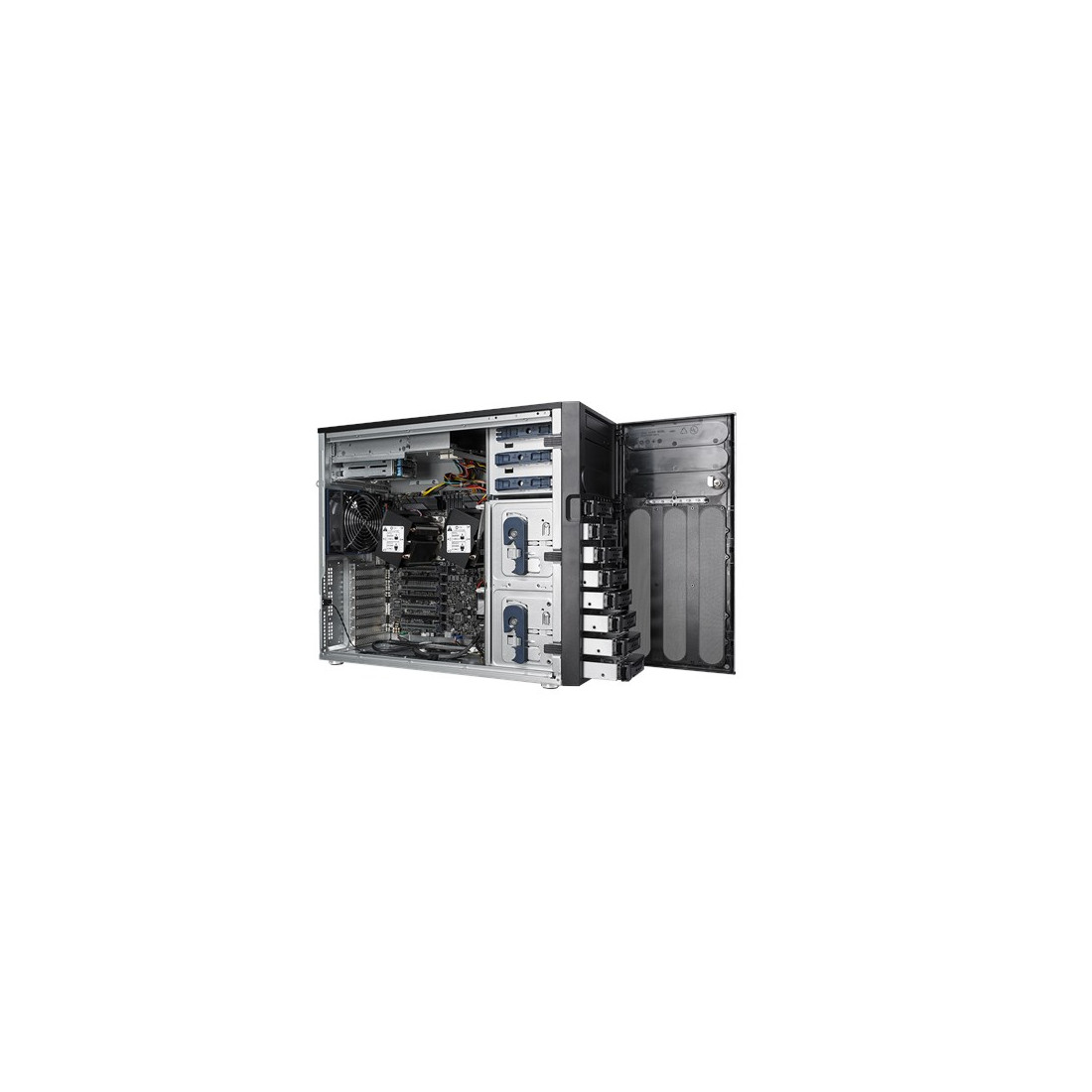

Multiple-GPU tower server with power efficiency for business and data center environments

• Descripción completa

• Specifications

  • Processor / System Bus
    2 x Socket P (LGA 3647)
    Intel® Xeon® Scalable Processors Family (205W)
    *Refer to support page for more information
    UPI (10.4 GT/s)
  • Core Logic
    Intel® Lewisburg PCH C621
  • Memory
    Total Slots : 12 (6-channel per CPU, 6 DIMM per CPU)
    Capacity : Maximum up to 768GB RDIMM/Maximum up to 768GB LRDIMM/Maximum up to 1536GB LR-DIMM 3DS
    Memory Type :
    DDR4 2666/2400 /2133 RDIMM
    DDR4 2666/2400 /2133 LRDIMM
    DDR4 2666/2400 /2133 LR-DIMM 3DS
    Memory Size :
    64GB, 32GB, 16GB, 8GB RDIMM
    64GB, 32GB LRDIMM
    128GB, 64GB LR-DIMM 3DS
    * Refer to support page for more information
    * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
  • Expansion Slots
    Total PCI-E Slots: 7 Slots
    2 x PCIe 3.0 x16 slots (Gen3 x16 link), FH, FL
    2 x PCIe 3.0 x16 slots (single Gen3 x16 link, dual Gen3 x8/x8 link), FH, FL
    2 x PCIe 3.0 x16 slots (Gen3 x8 link), FH, FL
    1 x PCIe 3.0 x16 slot (Gen3 x16 link), FH, HL
  • Storage
    SATA Controller :
    Intel® C621
    8 x SATA3 6Gb/s ports
    Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
    (Support Software RAID 0, 1, 5, 10 )
    SATA Controller :
    ASMedia® SATA 6Gb/s controller
    2 x SATA3 6Gb/s ports
    SAS Controller :
    ASUS PIKE II 3008 8-port SAS HBA card
    ASUS PIKE II 3108 8-port SAS HW RAID card
    12G SAS Support

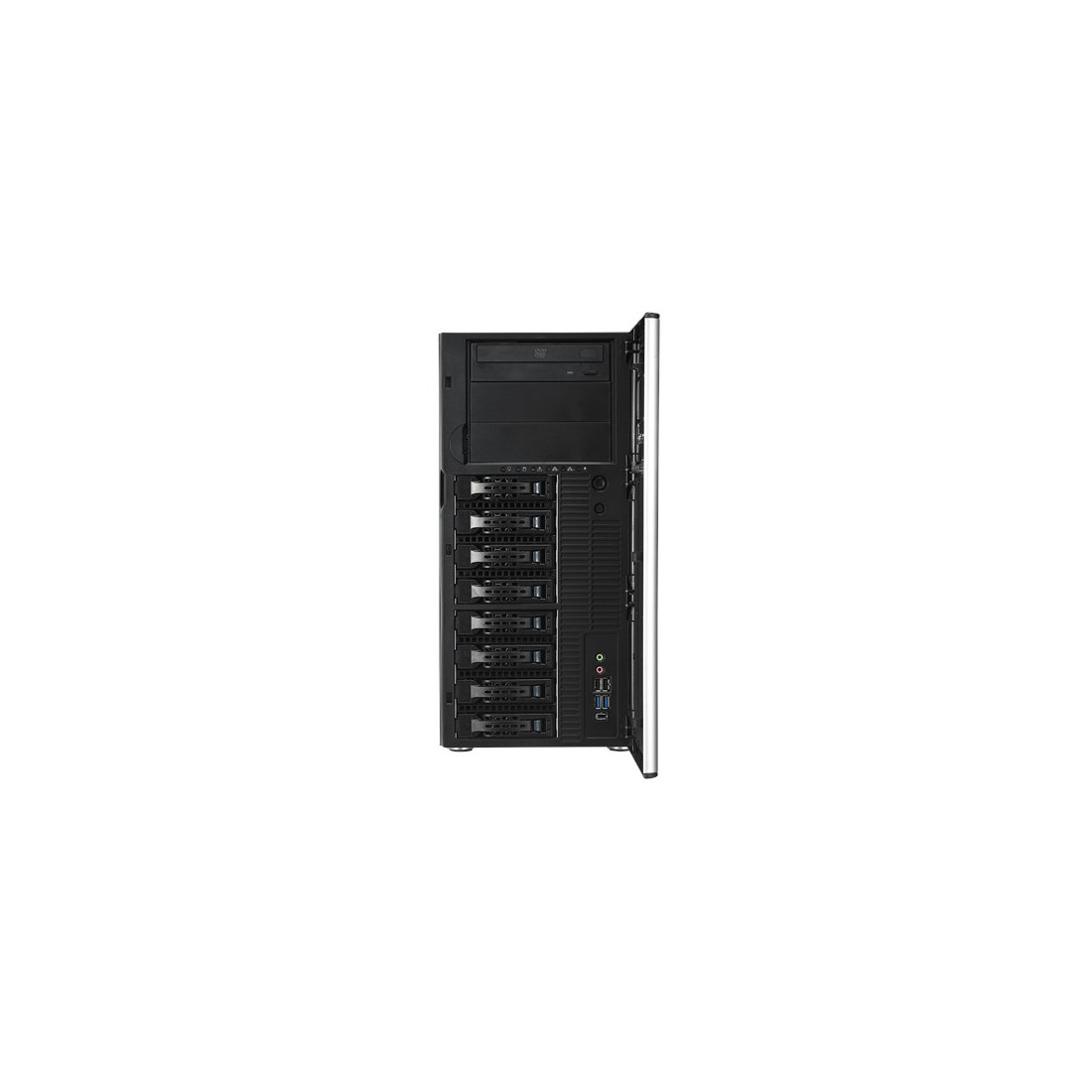

  • Drive Bays
    8 x 3.5” Hot-swap Storage Bays
    1 x M.2 Socket 3, supporting type 22110/2280/2260/2242 (PCIe Gen3 x4 and SATA mode)
  • Auxiliary Storage FDD/CD/DVD
    3 x 5.25" media bays
    (Options: No Device / DVD-RW / DVD-ROM)
  • Networking
    2 x Intel® I210AT
  • Graphic
    Aspeed AST2500 with 64MB VRAM
  • Front I/O Ports
    1 x Headphone jack
    1 x Microphone jack
    2 x USB 2.0 ports
    2 x USB 3.1 Gen 1 ports

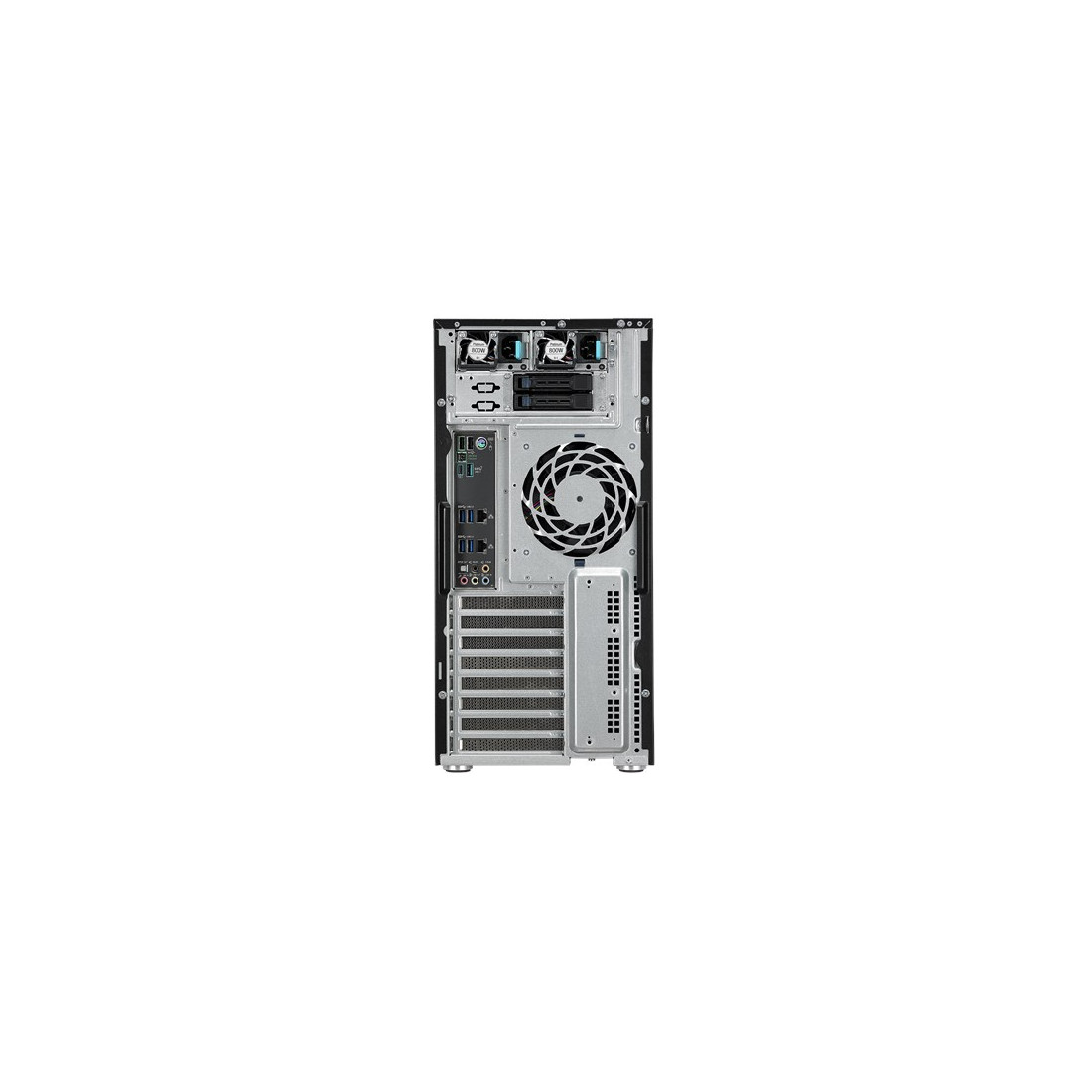

  • Rear I/O Ports
    2 x USB 3.1 Gen2 ports (1 x Type-A and 1 x Type-C™)
    4 x USB 3.1 Gen1 ports
    2 x USB 2.0 ports (1 supports USB BIOS Flashback)
    1 x USB BIOS Flashback button
    1 x PS/2 and keyboard Mouse port
    2 x RJ-45 LAN ports
    1 x Optical S/PDIF Out port
    5 x Audio Jacks
  • Switch/LED
    Front Switch/LED:
    1 x Power switch
    1 x Location LED
    1 x Reset switch
    1 x HDD Access LED
    1 x Message LED
    1 x Power LED
    LAN 1-2 LED
  • OS Support
    Windows® Server 2016
    Windows® Server 2012 R2
    Windows® 10 64-bit
    SuSE® Linux Enterprise Server
    CentOS
    Ubuntu
    Fedora
  • Management Solution
    ASUS Control Center (Classic)
    ASMB9-iKVM for KVM-over-IP (optional)
  • Regulatory Compliance
    BSMI, CE, C-Tick, FCC(Class A)
  • Dimensions
    455mm x 217.5mm x 545mm
    17.91" x 8.54" x 21.45"
  • Form Factor
    5U/Tower
  • Weight
    Net Weight: 18.33 Kg
    Gross Weight: 23.12 Kg
  • Power Supply
    800W 80PLUS Platinum Redundant Power Supply Module
    Rating: 100-127/200-240Vac,9A / 4.5A, 50 / 60Hz, Class I
  • Environment
    Operating temperature: 10°C – 35°C
    Non operation temperature: -40°C – 70°C
    Non operation humidity: 20% – 90% (Non condensing)
  • Note
    * Dual Intel® Socket P/LGA 3647 (Square)
    ** VROC (Virtual Raid on CPU) support, refer in the manual for detail.

  Part List

  • MB
    WS C621E SAGE
