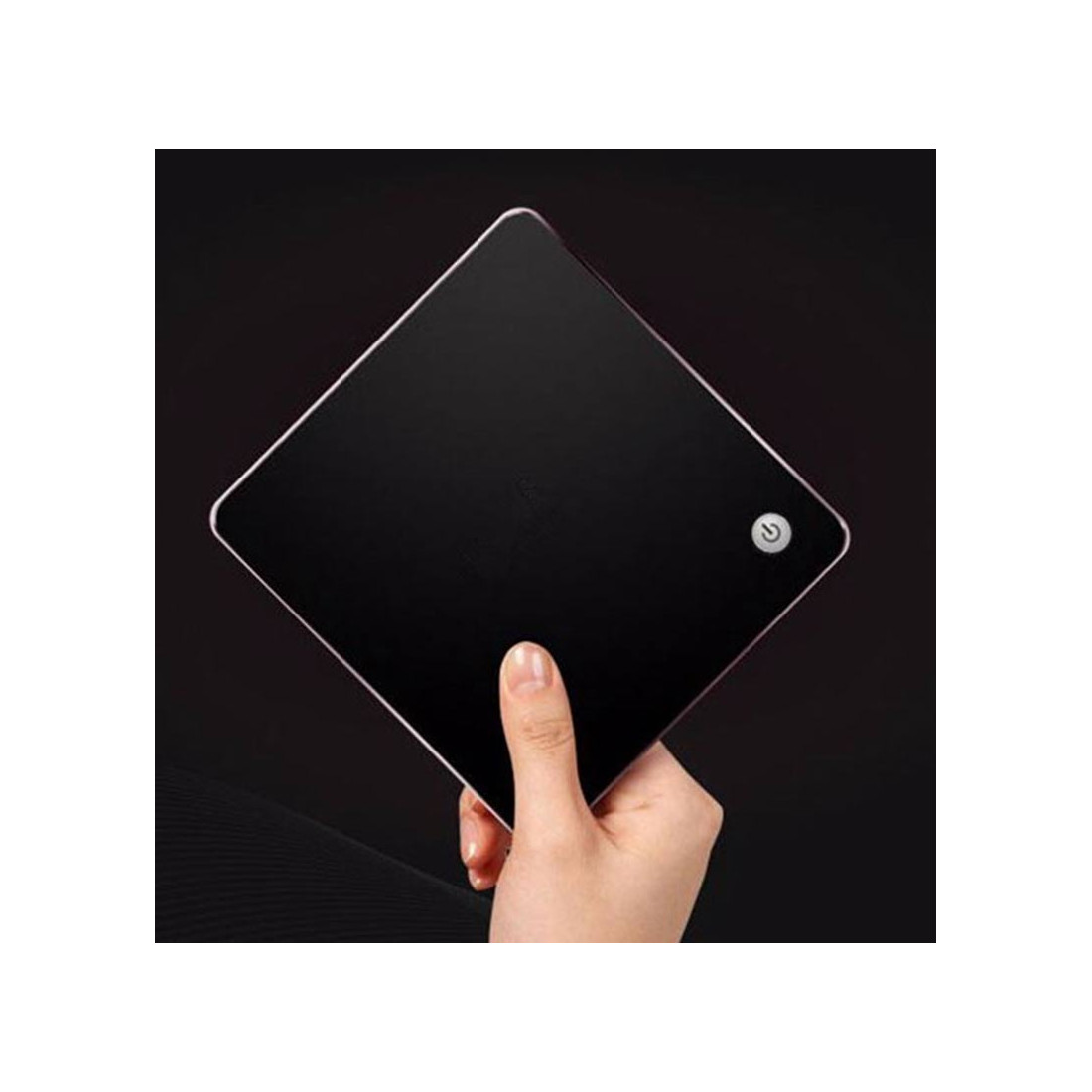

B15 CPU i7 8650U- 16Gb-NVME 250Gb.+SSD 500Gb.

Features Specifications B15 NUC:

MiniPc : Procesador Intel Core i7 8ª Gen 8650U  1.9/4.2 GHz  4*cores 8*threads + Intel Iris Graphics DUAL VIDEO SIMULTANEO ( Extender el escritorio en dos monitores)con Monitores Resol. 4K: 1*HDMI y 1*Mini DP + Adaptador de Mini DP a VGA DB15 +1*Gigabit LAN port+ WIFI INTEL 2.4G/5G Wifi B/G/N/AC + Bluetooth + 2*USB 3.0+2*USB 2.0+1*Type-C USB port+1*Audio Port + ADAPT. VESA para poder colocar detras del monitor + Dimensiones : 108*113*41mm. + Estructura totalmente de aluminio +  Power 19v. 65Wt. + Consumo: 25Wt. + (Opcional ampliar a 32gb o Ampliar a un segundo  SSD )

CPU Platform : Intel Kabylake/Skylake

Type : Kabylake/Skylake

Install Method : BGA1356

TDP : 15W,28w

Level 2 Cache : Depend on CPU

Chipsets : Intel PCH-LP

Memory : 16Gb. DDR4 ampliable a 32Gb.

DDR4 2133/2400MHz : Two SO-DIMM solt, Support up to 32GB,

Storage : SSD NVME de 250GB. M.2 PCIe con lectura y escritura: 3500MB/S y 2500MB/S. +2º SSD 500GB con lectura y escritura: 560MB/S - 530MB/S

a. NGFF(M.2) 22*80,UP to 2TB b. NGFF(M.2) 22*80+ std-2.5”9.5mm HDD,UP to 3TB

Graphic : Graphic Controller Integrated

Communications :

Wireless networking devices : a. 2.4G or 5G Wifi B/G/N/AC + d. Bluetooth

I/O Port : 2* USB 2.0 connectors + 2* USB 3.0 + 1*Type-C USB port

connector 1X Headphone-out/ MIC-in phone jack

Dual video simultaneo GPU Gráficos Intel® Iris® Plus 640  DUAL VIDEO SIMULTANEO ( Extender el escritorio en dos monitores)con Monitores Resol. 4K: HDMI/Mini DisplayPort

1X Mini DP 4K out

1X DC power

1X HDMI 4K  out

1X RJ45 LAN GIGABYTE

Audio Codec codec Azalia Codec support 2.1 channel output

Status Indication On/Off/Suspend LED ON/OFF/FLASH

security Kensington Lock Physical Outline

Inclido ADAPT. VESA para poder colocar detras del monitor

Dimension:

108*113*41mm(Support 2.5 Inch, need add extra)

Estructura total de aluminio: Peso:  530g

Power DC a.19V 40W b.19V 65W

Certification CE

Incluida licencia Operating System Windows 10 Profesional 64bit
